    Numbers before Sheet #

    Posted by Nic Bitting on September 19, 2023 at 10:02 am

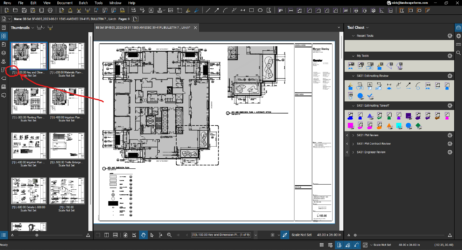

    Probably an easy answer here, but I haven’t been able to figure out why sometimes when I open a PDF the sheets are all labelled with the prefix [1] prior to the Sheet # (see attached screenshot). Does anyone know why this happens?

    Currently I just relabel per the Sheet #, but if there’s an easy way to prevent that prefix from showing up then I’d prefer that.

    Screenshot-2023-09-19-095445.png 366 KB Image File - Click to view
    Options
    Nic Bitting replied 1 year, 2 months ago 3 Members · 4 Replies
  • 4 Replies

  • Carl Wegman

    Member
    September 19, 2023 at 10:10 am
    Points: 816
    Rank: UC2 Brainery White Belt III UC2 Brainery White Belt III

    This depends on the document’s author.

    Here are some things you can ask the author to consider. (from Procore)

    How-can-I-improve-the-accuracy-of-OCR-on-my-drawings_.pdf 140 KB PDF - Click to view
    Options
    How-can-I-improve-the-accuracy-of-Specification-Section-Identification_.pdf 191 KB PDF - Click to view
    Options
    What-is-the-difference-between-raster-and-vector-content-in-PDFs_.pdf 62 KB PDF - Click to view
    Options

    • Carl Wegman

      Member
      September 19, 2023 at 10:17 am
      Points: 816
      Rank: UC2 Brainery White Belt III UC2 Brainery White Belt III

      Sorry, the links don’t display on the Forum but the downloads DO open in Revu…

  • Doug McLean

    Member
    September 19, 2023 at 3:22 pm
    Points: 15,212
    Rank: UC2 Brainery Advanced Blue Belt UC2 Brainery Advanced Blue Belt Rank

    That’s the way whoever created the PDF’s chose to label them.

    Quickly fixed with page labeling

    • Nic Bitting

      Member
      September 27, 2023 at 10:21 am
      Points: 987
      Rank: UC2 Brainery White Belt IIII UC2 Brainery White Belt IIII

      Noted, I figured that’s the case, but just wanted to double check. Thanks @Doug McLean
