    Posted by David Cutler on August 26, 2021 at 9:57 am

    I’m looking to print out some sheets for hand sketches. Is anyone aware of a method to get Revu to print the grid markers onto paper? I don’t see any options for “printing grid lines”. Best I’ve come up with is to take a screen snip and then pasting it back onto my pdf.

    Chad Czerwinski replied 3 years, 3 months ago 5 Members · 9 Replies
  • 9 Replies
  • Matt Hackman

    Member
    August 26, 2021 at 10:00 am
    Points: 2,323
    Rank: UC2 Brainery Yellow Belt IIII UC2 Brainery Yellow Belt IIII

    If you create a new PDF from the ‘file’ tab in the upper left, you can select page size and then change the style from ‘blank’ to other patterns with a couple being grid lines.

    • Troy DeGroot

      Organizer
      August 27, 2021 at 1:44 pm
      Points: 23,744
      Rank: UC2 Brainery Brown Belt III UC2 Brainery Brown Belt III

      We must have been typing at the same time. Thanks for contributing @uncle_gene

      • Matt Hackman

        Member
        August 27, 2021 at 3:10 pm
        Points: 2,323
        Rank: UC2 Brainery Yellow Belt IIII UC2 Brainery Yellow Belt IIII

        Perfect timing! i was typing as fast and clear as I could to get the first comment!

  • Troy DeGroot

    Organizer
    August 26, 2021 at 10:02 am
    Points: 23,744
    Rank: UC2 Brainery Brown Belt III UC2 Brainery Brown Belt III

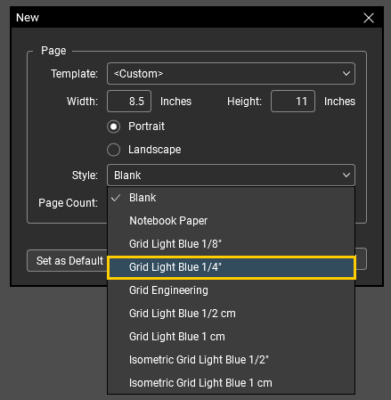

    File > New. In the resulting window select the Style you want.

  • David Cutler

    Member
    August 26, 2021 at 10:13 am
    Points: 26,769
    Rank: UC2 Brainery Advanced Brown Belt UC2 Brainery Advanced Advanced Brown Belt Rank

    Thank you for the quick replies Matt and Troy!

  • Andrew Veggian

    Member
    August 26, 2021 at 10:26 am
    Points: 2,608
    Rank: UC2 Brainery Orange Belt UC2 Brainery Orange Belt Rank

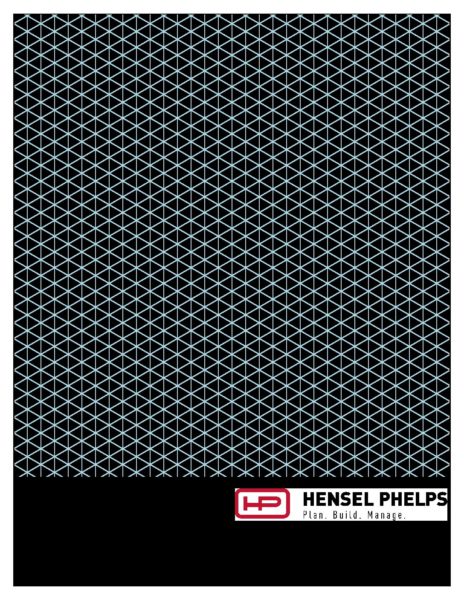

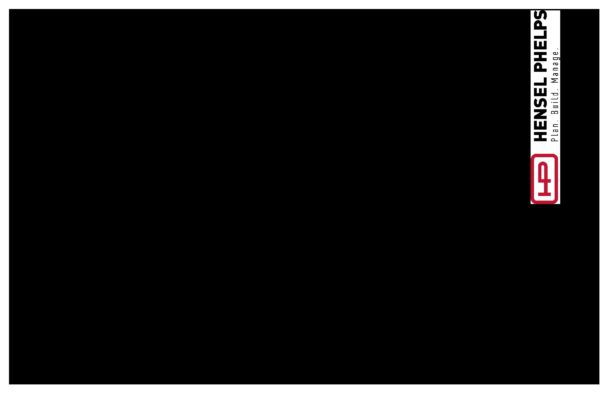

    I took it a step further and created template files with different size paper, different grid patterns, and a title block. I will share my files with everyone (See Attached). You can take these files and add them to the list of templates by going to File>New PDF from Template>Import then select these files. Of course, change to your company logo first.

    • David Cutler

      Member
      August 26, 2021 at 11:15 am
      Points: 26,769
      Rank: UC2 Brainery Advanced Brown Belt UC2 Brainery Advanced Advanced Brown Belt Rank

      Thank you for sharing these Andrew!

    • Troy DeGroot

      Organizer
      August 27, 2021 at 1:46 pm
      Points: 23,744
      Rank: UC2 Brainery Brown Belt III UC2 Brainery Brown Belt III

      This is awesome @andrew-veggian

      Thank you for sharing!

    • Chad Czerwinski

      Member
      August 28, 2021 at 8:03 am
      Points: 1,924
      Rank: UC2 Brainery Yellow Belt III UC2 Brainery Yellow Belt III

      These are great Andrew. I was honestly going to make some of these up for myself now that I am at a new company with their logos. Yours look great. Always nice to stand on the shoulders of others.
