Angled markups

  • Angled markups

    Posted by Doug McLean on February 15, 2023 at 3:40 pm

    Who has encountered this??

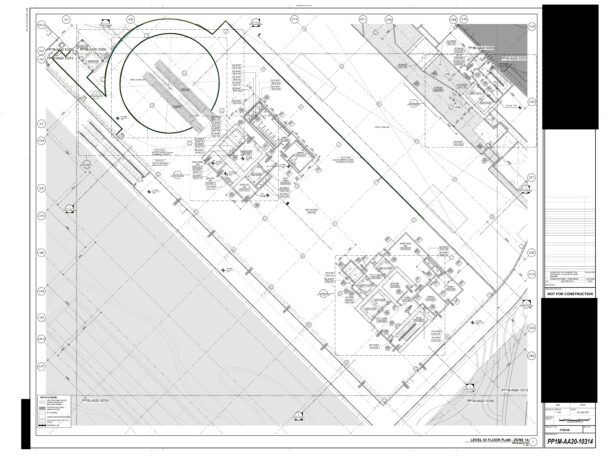

    You’ll notice on the attachment that the layout of this mall is set on the bias on the sheet.
    When this happens, Revu does weird things with markups.

    If you dig into this, you’ll see that we have set our Spaces showing the two rooms that we have product to take off.

    If you select the Straight Glass Guardrail w/ Wood Cap markup that runs parallel to GL CYY you’ll see that the pick boxes are in a square, even though the markup is on the bias. Because of this, those two markups are not captured inside the Space for the 3rd Floor Restaurant.

    I can’t even really change the size of the space because the markup would still cross over the 3rd Floor Escalator and Stairs Space.

    Any ideas as to how to capture this markup inside of the Restaurant Space?

    Doug McLean replied 12 months ago 4 Members · 9 Replies
  • 9 Replies
  • Vince French

    Member
    February 16, 2023 at 1:51 am
    Points: 11,498
    Rank: UC2 Brainery Blue Belt I UC2 Brainery Blue Belt I

    That’s an interesting one @Doug!

    I note that if you move the markup further back into the shape it’s then included as being in the space.

    So, I’m guessing that this is a bug that needs reporting.

  • David Cutler

    Member
    February 16, 2023 at 6:27 am
    Points: 22,403
    Rank: UC2 Brainery Brown Belt II UC2 Brainery Brown Belt II

    One option might be to duplicate the sheet and make the space larger so that it encompasses the markup. You would probably want to add a text box label of some sort on each sheet saying “use for room A only”

    (Disclaimer – responding from my phone so working from your description only) 😎

    • Doug McLean

      Member
      February 16, 2023 at 11:06 am
      Points: 11,785
      Rank: UC2 Brainery Blue Belt I UC2 Brainery Blue Belt I

      I did think about making a new blank page, taking a snapshot and then rotating the snapshot on the blank page.
      I shouldn’t have to do that though.

  • Vince French

    Member
    February 16, 2023 at 12:00 pm
    Points: 11,498
    Rank: UC2 Brainery Blue Belt I UC2 Brainery Blue Belt I

    It’s a weird one @Doug but try moving the control point for the restaurant space that is next to where it says “SA Shaft 0314-125” and “126”.

    Move this down slightly and it appears the measures are then included in the space.

    The next one further up also may need moving down a bit as well.

    • Doug McLean

      Member
      February 16, 2023 at 1:34 pm
      Points: 11,785
      Rank: UC2 Brainery Blue Belt I UC2 Brainery Blue Belt I

      Thanks Vince. (from Danna too!) (our other Estimator)
      That worked

      • Vince French

        Member
        February 16, 2023 at 2:01 pm
        Points: 11,498
        Rank: UC2 Brainery Blue Belt I UC2 Brainery Blue Belt I

        No problem @Doug. Will you be reporting that one as although moving the points gets over the problem there is obviously still a bug in there?

  • Doug McLean

    Member
    February 16, 2023 at 10:08 pm
    Points: 11,785
    Rank: UC2 Brainery Blue Belt I UC2 Brainery Blue Belt I

    Yeah, I think I will.

  • Troy DeGroot

    Organizer
    February 23, 2023 at 9:43 am
    Points: 20,343
    Rank: UC2 Brainery Brown Belt UC2 Brainery Advanced Brown Belt Rank

    When I get plans on the bias like this, I use the Deskew tool to set the rotation of the sheet to the building. Could that work @Doug McLean ?

    • Doug McLean

      Member
      February 23, 2023 at 10:03 pm
      Points: 11,785
      Rank: UC2 Brainery Blue Belt I UC2 Brainery Blue Belt I

      Didn’t even think of that.
