A way to avoid re-typing data

  • A way to avoid re-typing data

     Troy DeGroot updated 2 weeks, 3 days ago 4 Members · 12 Posts
  • David Cutler

    Member
    September 10, 2021 at 6:46 am
    Points: 4,470
    Rank: UC2 Brainery Orange Belt III UC2 Brainery Orange Belt III

    My family and I very involved with the Scouts BSA program. Last night I ran “swim tests” for 19 youth and adults. We have an online registration system that works well, but I had a PDF form that I needed to fill out with everyone’s names. Rather than hand writing or re-keying all the names I tried an idea that I have had for a while:

    1. Downloaded registration data in Excel

    2. Print the data with no gridlines to a PDF

    3. Using Revu’s snapshot tool copy the data from the PDF

    4. Paste the snapshot onto the form and use the grips to stretch to fit

    This worked great!

  • Troy DeGroot

    Organizer
    September 10, 2021 at 10:28 am
    Points: 6,853
    Rank: UC2 Brainery Purple Belt I UC2 Brainery Purple Belt I

    I’ve been saying it for years, Bluebeam is the Franks Hot Sause of software. 🔥

    “You can put that $h!t on anything.” 🤣😂

    • David Cutler

      Member
      September 10, 2021 at 11:59 am
      Points: 4,470
      Rank: UC2 Brainery Orange Belt III UC2 Brainery Orange Belt III

      This is another case where the Revu Snapshot tool’s ability to only capture the “linework” without the background color provides better functionality than the default Windows “Snip & Sketch”.

  • Vince

    Member
    September 11, 2021 at 4:27 am
    Points: 1,525
    Rank: UC2 Brainery Yellow Belt I UC2 Brainery Yellow Belt I

    Hi David

    Can you shortcut this further by using the ‘Snip & Sketch’ feature on Windows and the just paste the resulting extract straight into Bluebeam?

    I’ve used this to copy pictures from websites and put straight into a pdf file in Bluebeam.

    • David Cutler

      Member
      September 13, 2021 at 7:30 am
      Points: 4,470
      Rank: UC2 Brainery Orange Belt III UC2 Brainery Orange Belt III

      That’s a good question Vince.

      The standard “Snip & Sketch” captures does work well for photos and does save the step of printing the photo to a PDF. The challenge becomes when working with text or linework “Snip & Sketch” also captures the background. As a result, in this example “Snip & Sketch” would generate a block of white, in addition to the text. The Revu Snapshot tool only captures the text from the PDF (assuming you have the gridlines turned off in Excel when you print to PDF).

      As a side note, for more complicated forms, I’ve considered making an Excel grid template with cell names in each cell (A1, A2, A3) and then printing that to a PDF. Using the Snapshot tool I could then paste that grid over another PDF and use the grid to “map” the form that I’m looking to fill out. I’d then write a series of formulas in Excel to place my data where it needs to be to be pasted into the form.

      • Troy DeGroot

        Organizer
        September 14, 2021 at 3:00 pm
        Points: 6,853
        Rank: UC2 Brainery Purple Belt I UC2 Brainery Purple Belt I

        Once you have the grid imported in the PDF, try “Automatically Create Form Fields”

        Oh wait, add that to your list of reasons to get Extreme. 😂😂

        • David Cutler

          Member
          October 5, 2021 at 6:57 am
          Points: 4,470
          Rank: UC2 Brainery Orange Belt III UC2 Brainery Orange Belt III

          When you look at Brett’s form below @troydegroot is there a way to pull data from Excel into Revu using auto created fields as you suggest above? Would this be some sort of “reversed” quantity link?

  • Brett Ruppel

    Member
    October 4, 2021 at 3:48 pm
    Points: 510
    Rank: UC2 Brainery White Belt UC2 Brainery White Belt Rank

    Dave and I have been going back and forth about this topic for quite some time now. At my company we use a function in Adobe Pro to pull data directly from a spreadsheet to a specified bid form to make sure we do not incorrectly write the wrong number for the unit bid price or for the extended amount based on the quantity. Basically we would need to be able to correlate a bid line item with a unit bid price and the extended total price for the line item. I can pull this info straight out of my bid software

    So, why do we need this? One, mistakes will cost you a project. If you mess up these numbers, it will allow your bid to be challenged and possibly overturned as irregular. Two, hand writing or typing per box takes a lot of time. Usually the final numbers on these bids are coming in late and we are rushing to completion on this bid form, which may have very few or a few hundred bid items.

    I would really like to find a way to do this via Bluebeam so that we aren’t needing to maintain two separate software solutions. Also, most of our employees have Bluebeam, but not always Extreme, and few have Adobe.

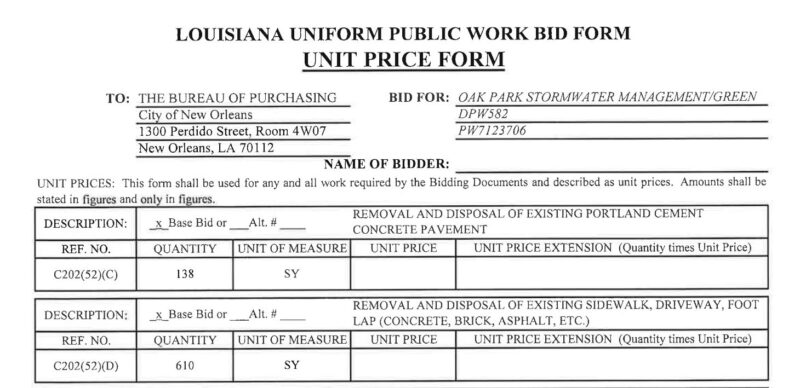

    Hopefully these two attachments make sense. I want to take the Unit Bid Price & Total Bid Price from the “B2W Item Pricing” file and have correlating boxes that it will autofill on the “La Uniform PWBF” file. These are two separate files that I’m stitching together, but imagine the Reference # would match and we could autofill.

    • David Cutler

      Member
      October 5, 2021 at 7:25 am
      Points: 4,470
      Rank: UC2 Brainery Orange Belt III UC2 Brainery Orange Belt III

      Interesting to know that there is a function in Adobe Pro that allows you to pull the data in.

      A couple of follow up questions about your current process:

      1. What is the name of the function in Adobe Pro?

      2. Does the functionality read/match the bid form or do you have to ensure that the data is in the correct order in your Excel file?

      3. Is the bid form consistent with regards to the location of the fields that you need to fill? Is the item description limited to 2 lines or do they sometimes stretch to 3 lines?

      4. For large bids are pages 2, 3, 4 etc. consistent with regards to the number of items on each page?

      As with most estimating tasks the time you invest in the begging to set up your estimate format greatly reduces bid day stress. You might be able to use a procedure similar to what I outlined above to set your “initial” bid at bid time – 60 minutes and then make the final adjustments on the items that have last minute changes with simple text boxes with white backgrounds that sit on top of the original numbers. As a final check have your total locations setup with text boxes ready to be entered at the time you close your bid.

      One word of caution – ensure that you flatten your bid document before you submit it. This should eliminate the risk of someone accidently moving some of your data after you have submitted it.

      Bonus thought – for your last minute changes you could create a custom tool with two text boxes pre-sized and formatted to drop in to post your final adjustments.

      Interested to see what others recommend…

      • Brett Ruppel

        Member
        October 5, 2021 at 8:01 am
        Points: 510
        Rank: UC2 Brainery White Belt UC2 Brainery White Belt Rank

        Form Fields and then Merge. I have a few videos showing how it is done, that I can give you access to. Send me your email addresses and I will host and give some limited access to. My estimator gets very protective of his process here so that the competition doesn’t get ahold of it……….

        • David Cutler

          Member
          October 5, 2021 at 10:52 am
          Points: 4,470
          Rank: UC2 Brainery Orange Belt III UC2 Brainery Orange Belt III

          Interesting approach Brett. I haven’t used a “mail merge” for years. On a quick google search I found something that looks promising, but I haven’t explored it:

          https://support.bluebeam.com/online-help/revu20/Content/RevuHelp/Menus/Tools/Form/Data/Data.htm

          As a different approach have you tried using Revu to save the PDF as either a Word document or an Excel file? In Word you could then setup a similar merge to what you are using in Adobe. If you are able to save it into Excel format you might just be able to work with simple formulas.

    • Troy DeGroot

      Organizer
      October 5, 2021 at 10:56 am
      Points: 6,853
      Rank: UC2 Brainery Purple Belt I UC2 Brainery Purple Belt I

      @brettruppel This is interesting. I need to get caught up with the whole process here and make sure I understand the existing process.

      1. You’re creating quantities using markups in Bluebeam
      2. Manually entering line items and quantities into B2W
      3. Printing a PDF or exporting a CSV file from B2W. ?
      4. Using Adobe to import data from PDF or .CSV into a PDF form.
