Member Isaac Harned
Member
Forum Replies Created
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
Wow, looks like I missed the party on this one, lol I think my notifications are broken. Very sorry to see there is no functionality on this. Haven’t had any use quite yet myself, but would help as I start to get more into Commissioning. They have definitely been talking of Javascript enhancements for a while, so I am hopeful that its just around the corner, may be a focus of the conference if I’m reading the room right.
-
Points: 8,204Rank: UC2 Brainery Purple Belt III

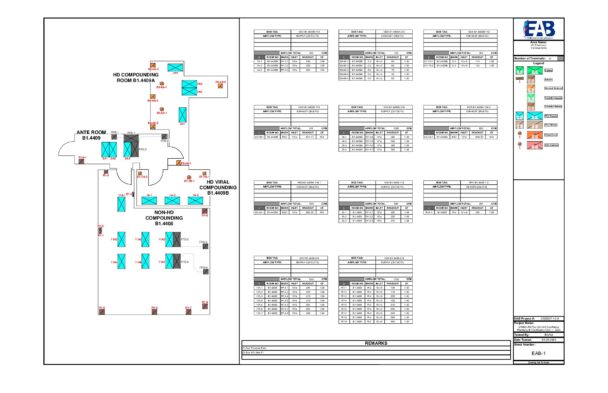

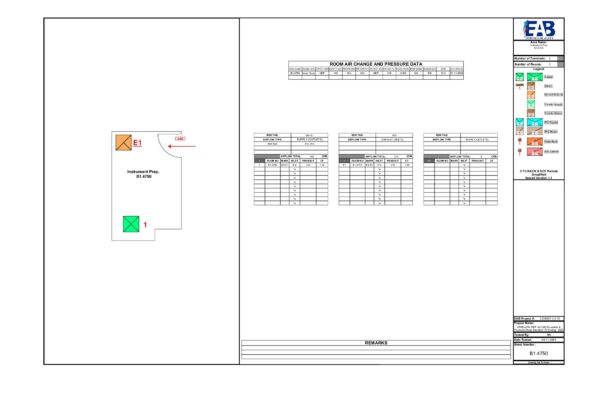

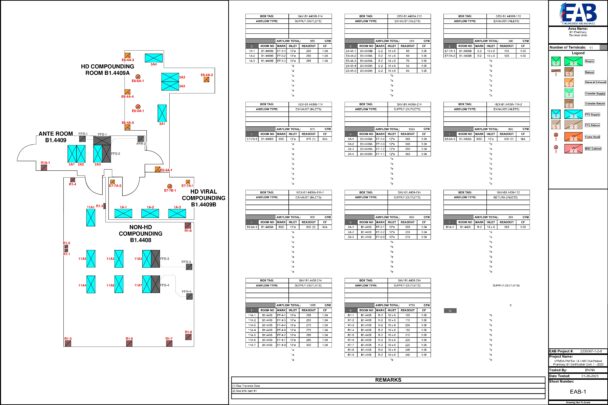

So the stapler issue has been around since 21.0.3.0, and I have been in touch with support since the day it came out. In the attached files, EAB-1 was processed prior to 21.0.3.0 and processed as
expected. Since the layer print setting were set to “Use Default”,
all inactive layers were not printed. The second print was processed after the
21.0.3.0 update, and printed all layers even if they were inactive, and had the

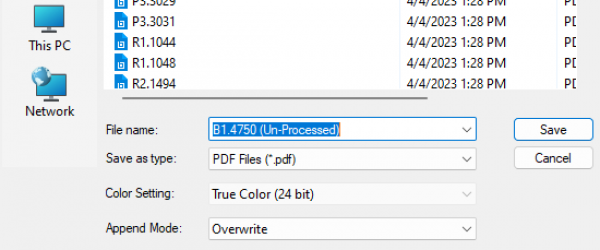

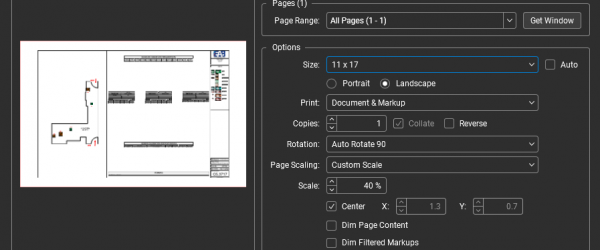

same layer settings as previous.The main issue for this update is that my work around for this was to Print to PDF using the normal print dialogue. I would select Print as Image (vector and grid would make the layers print or weird inconsistencies in the quality across the page). Before the 21.3 update, after using the print function from the normal Ctrl+p dialogue, a stapler window would pop up, with selections for “Application” and “Page Rotation”. These options no longer appear in the latest 21.3 update, and no matter what orientation I select or what rotation (Auto 90 and Auto -90 both tried) options I select in the print window, my pages process as portrait. The stapler options used to fix this by selecting Autorotate.
Forms were created in Revu.
Long story short, I used to just be able to select these forms in the explorer and right click send to stapler, flatten and print very crisp all at once. Now it’s a 3 step process and not very intuitive. Trying to get the guys in my department used to a new workflow and it keeps changing, very frustrating.
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
OK, modified the code so that you can pass the field name and group in the function call, this will make it work for any dropdown that you want to grab from whichever group needed. This will need to be placed in the dropdowns up top where you are selecting the group teams. I did have to rename the field on the bottom, I think the colon in the previous name was giving me issues. Here is a couple of snapshots showing my locations and the file back with the first couple of groups loaded and set. 49rs still not working. I may have to get it to pass something different without numbers so the code knows what to do.
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
Here is a simple sample for locking a form field, but I assume you will want some kind of password system, we’ll work on that:
var field = this.getField(“fieldName”);
if (field != null) {
field.readonly = true;
}
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
Ok, you were on the right track, and I see you are using Chat GPT, which will help. Most of the issue I think was that you need to populate the actual field names instead of jsut “dropdown 1” etc. Here is the conversation I am having with chat. I have most values populating into the list, except for 49rs, which is giving me some issues. Will follow up later as well as a way to lock the fields and submit via email. more than likely can get it done:
Also, make sure that “1:” through “6:” are already built as dropdowns. The call for “populateDropdown();” should be in every “Group” dropdown as an action, I prefer on mouse blur, that way it works universally on any system including iPad, but up to you.
https://chatgpt.com/share/2b41d812-6299-49d8-a417-bd6ce87f4a5f
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
I’m don’t consider myself expert, but may be able to help
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
I am curious Doug, on PDF usage on sharepoint in relation to storage. You have some massive PDF’s, does your storage balloon with the versioning?
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
Played with this a little more, sorry, haven’t messed with stamps before, it should use an event callout that way it knows which file it’s looking at. Here is an example of the basic submittal approval stamp that’s built in to Revu, but modified to pull that File name. Check out the “getProjectNoFromDocName();” callout and function at the end. Let me know if this works, and if more issues, we may have to see the specific stamp file to help.
var builder =
{
// These map to Text Fields in the Stamp
textBoxes :
[
{ field: “Other – Description”, description: “Other – Description:”, default: function() { return “”; } },
{ field: “CheckedBy”, description: “Checked by:”, default: function() { return Collab.user; } },
{ field: “Date”, description: “Date:”, default: function()
{
var curDate = new Date();
return (curDate.getMonth() + 1) + “/” + curDate.getDate() + “/” + curDate.getFullYear();
}
},
{ field: “Submittal”, description: “Submittal #:”, default: function() { return event.source.source.documentFileName; } },
{ field: “Project”, description: “Project:”, default: function() { return getProjectNoFromDocName(); } }
],
// This maps to a Radio Group in the PDF named ‘Type of Submittal’
radioGroup : “Document Type”,
radioButtons :
[
// value maps to the ‘Choice’ of each radio button in the group, description will show on the dialog
{ value: “SubmittalForApproval”, description: “Submittal For Approval” },
{ value: “Resubmittal”, description: “Re-Submittal For Approval” }
],
checkBoxes :
[
{ field: “Approved” },
{ field: “Rejected” },
{ field: “Revise” },
{ field: “Not Reviewed” },
{ field: “Other” }
]
};
function getProjectNoFromDocName() {
var docName = event.source.source.documentFileName; // Access the document name correctly
return docName.slice(0, 4); // Grab the first four characters
}
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
var name = this.documentFileName;
this.getField(“fieldname“).value = name;
Alternatively if it needs to be split into multiple outputs it might look something like:
var name = this.documentFileName;
var parts = name.replace(“.pdf”, “”).split(“_”);
var projectNum = parts[0];
var projectName = parts[1];
this.getField(“ProjectNo”).value = projectNum;
this.getField(“ProjName”).value = projectName;
This of course is if you are using the same identifier to split the Number and name in the doc title, i.e. “_” in this case
Hopefully this helps, let me know if you have anything else!
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
The large chunk of the code will be global, under “Tools/Form/JavaScript”. Then you should place the “populateDropdown();” in the Properties/Actions of each “Group” dropdown. As far as the locking for form fields, it should be it’s own button. The locking code will need some tuning, probably a Regular expression to find all the fields that start with “Group”. GPT can help you sort that out. I haven’t been able to come back to this yet, but the print and email may be a little bit difficult with normal javascript as there is not yet a way to call out to other programs for actions like that as far as I can tell. But, if everyone is using bluebeam it can be simple to add a “Script” (different from JavaScript, these are kind of like bluebeam macros, the Script Reference doc on BB website relates specifically to these, and you can find them under “Document/Scripts”). Specifically there is a pre-built “Flatten and Print” button you can add to your toolbar that can automate this and pull up the email with attachment already created.
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
Copy, I am also looking into the permission capabilities of sharepoint itself to set the PDF’s to a check in check out system. Technically the permissions would have to be set per folder, but as I understand it, Power Automate can handle the heavy lifting.
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
Thank you, that helps alot, we are slowly transitioning, and talks have turned to moving our entire server, makes me nervous
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
No worries, I’m glad it worked out! Not to make myself look like a loser but a lot of my answers come from GPT 🤣 If you guys ever struggle with this, just ask it questions based on “Adobe PDF JavaScript”. There are a few methods that don’t work in Revu, but with a little troubleshooting and back and forth with the bot, but that usually gets me pretty close to what I need.
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
I would agree here, plenty you can do with a CSV file, but without the getAnnots method, your scripts will never even see the markups.
-
Points: 8,204Rank: UC2 Brainery Purple Belt III
The script route would only work if they fixed the arguments for it so that it can reference specific pages. I think the defaults might be your only option, and it would be a two step manual process.
