Custom Columns are locked after updating drawings in a sessions

  • Custom Columns are locked after updating drawings in a sessions

    Posted by Chris Riley on December 21, 2022 at 3:11 pm

    Maybe I missed something somewhere along the way. I have custom columns that I created prior to putting a document in a Session. Revised drawings show up, pulled document down from Sessions and updated it with new drawings. Put document back up on Sessions and now all my custom columns are no accessible, they are there I can see them I see the data in them but I cannot input new data into my custom columns. What gives?

    Troy DeGroot replied 1 year, 10 months ago 4 Members · 18 Replies
  • 18 Replies
  • David Cutler

    Member
    December 22, 2022 at 8:46 am
    Points: 26,754
    Rank: UC2 Brainery Advanced Brown Belt UC2 Brainery Advanced Advanced Brown Belt Rank

    Again @ChrisRiley I’m not a Sessions user. Commenting to engage @Roye and @Doug McLean

  • Liz Larsen

    Member
    December 22, 2022 at 12:12 pm
    Points: 4,855
    Rank: UC2 Brainery Orange Belt IIII UC2 Brainery Orange Belt IIII

    Honestly, both questions sound like they warrant an email to Bluebeam tech support.

  • Troy DeGroot

    Organizer
    January 4, 2023 at 10:39 am
    Points: 23,744
    Rank: UC2 Brainery Brown Belt III UC2 Brainery Brown Belt III

    @ChrisRiley did you load the custom columns into the revised drawings before you uploaded them? It sounds like you understand the limitations, so I’m confident you did, but have to ask to check that box. I’m curious if new markup data is locked, only existing ones, or both?

    • Chris Riley

      Member
      February 8, 2023 at 6:18 pm
      Points: 1,248
      Rank: UC2 Brainery Yellow Belt UC2 Brainery Yellow Belt Rank

      Been busy so been a while since I have been on this sight. Its only the existing markups that are locked, the columns are fine. I think it has to do with flattening when I pull the file down off of sessions, insert my new drawings and then put the file back up on sessions. Really kind of sucks because I was getting these columns set up to track my RFIs so the RFIs that I have answers to since I updated the drawings in the file I can’t update the markup in the resolved column. However, I was thinking about switching to using Sets (I like the term ‘Binder’ much better’ also), and running in Projects instead of Sessions. Like Liz, not sure if I can get the cats herded in the same direction. Was thinking of creating a ‘Category’ for RFIs and putting my RFIs right in the same Set as my contract drawings kind of like another discipline

    • Chris Riley

      Member
      February 8, 2023 at 6:21 pm
      Points: 1,248
      Rank: UC2 Brainery Yellow Belt UC2 Brainery Yellow Belt Rank

      failed to mention that my columns are part of my custom Profile, so I believe all I have to do is open the new drawings and then save them to get the columns come in. I might be wrong on this though.

      • Troy DeGroot

        Organizer
        February 9, 2023 at 10:15 am
        Points: 23,744
        Rank: UC2 Brainery Brown Belt III UC2 Brainery Brown Belt III

        When you’re in the new drawing, go to the custom column window and export your custom column file. Save it someplace handy. Anytime you need to load them you can go to the same window and import the file before you upload to the session.

        @lizlarsen will like this, you can also build a custom button with JavaScript to quickly load columns and layers in a blink of an eye.

        I do like the idea of Projects rather then Session because you have the ability to utlize a folder structure. Sets is up for debate in the community, but I like them. Your idea for an RFI category is fantastic, I’d like to see that one played out.

        • Liz Larsen

          Member
          February 9, 2023 at 11:02 am
          Points: 4,855
          Rank: UC2 Brainery Orange Belt IIII UC2 Brainery Orange Belt IIII

          Are you talking about Scripts or JavaScript?

          It’s confusing, but those words mean different things in Bluebeam.

          • Troy DeGroot

            Organizer
            February 9, 2023 at 5:38 pm
            Points: 23,744
            Rank: UC2 Brainery Brown Belt III UC2 Brainery Brown Belt III

            Scripts, sorry. 😜

        • Chris Riley

          Member
          February 9, 2023 at 2:28 pm
          Points: 1,248
          Rank: UC2 Brainery Yellow Belt UC2 Brainery Yellow Belt Rank

          Yeah, I have my custom columns exported, so I can import whenever needed. I also have a pdf file called Layers that has all my default layers so I just insert that page into my combined document and it creates those layers save the document and then delete the page, the Layers stay in the combined file even though you can’t see them, but if your tools in your tool bag are assigned to those layers it starts populating as you add markups. Terry Cline has a good video on how to do the Layers on Youtube https://www.youtube.com/watch?v=-eY0IYljFxs

          • David Cutler

            Member
            February 9, 2023 at 4:06 pm
            Points: 26,754
            Rank: UC2 Brainery Advanced Brown Belt UC2 Brainery Advanced Advanced Brown Belt Rank

            I like the “Layers” page idea @ChrisRiley !

            I do something similar with what I call my “Takeoff Coversheet”, though I hadn’t thought of putting my standard layers on it… This coversheet has most of my “standard” items that we include on every estimate (Mobilization, Supervision, Layout, etc) along with standard testing items. I insert the page (saved as a template) into my takeoff file. That way when I import my takeoff to create my bid items I have all of those standard items in the file without having to select them every time.

            • David Cutler

              Member
              February 9, 2023 at 4:15 pm
              Points: 26,754
              Rank: UC2 Brainery Advanced Brown Belt UC2 Brainery Advanced Advanced Brown Belt Rank

              And after watching that video I now need to write a script to add my coversheet with a single click!

              Thank you for sharing this @ChrisRiley !

            • Troy DeGroot

              Organizer
              February 9, 2023 at 5:43 pm
              Points: 23,744
              Rank: UC2 Brainery Brown Belt III UC2 Brainery Brown Belt III

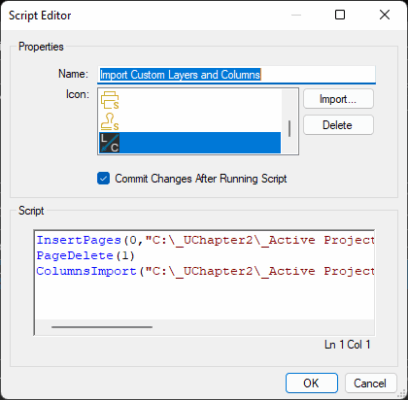

              Right, I built a script that would import that sheet with the layers, delete the layers page, then import the custom column file. All in one button.

            • Chris Riley

              Member
              February 10, 2023 at 8:19 am
              Points: 1,248
              Rank: UC2 Brainery Yellow Belt UC2 Brainery Yellow Belt Rank

              Not 100% sure I would want this in that script, but at the end of the script add a ‘Save’ option. Not sure I want the script to have that much control though?

            • Troy DeGroot

              Organizer
              February 10, 2023 at 8:23 am
              Points: 23,744
              Rank: UC2 Brainery Brown Belt III UC2 Brainery Brown Belt III

              True @ChrisRiley, that could overwrite things you don’t want overwritten.

              Can we script a “Save As” I wonder? I’d be Ok with that.

            • Chris Riley

              Member
              February 10, 2023 at 8:43 am
              Points: 1,248
              Rank: UC2 Brainery Yellow Belt UC2 Brainery Yellow Belt Rank

              Save As would preserve the integrity of the original document for those not paying attention. Typically these are some of the very 1st things I do when I get new drawings in and this needs to be done anyway so Save or Save as tomato/tomoto. Which its not a big deal for me since the rest of the herd isn’t following me anyway (I hate not having standards, & nobody wanting to get onboard to establish them).

            • Troy DeGroot

              Organizer
              February 10, 2023 at 8:58 am
              Points: 23,744
              Rank: UC2 Brainery Brown Belt III UC2 Brainery Brown Belt III

              Right!

              You know what they say, “If you’re the smartest person in the room, you’re in the wrong room.” 🤣

              Really all you can do is keep doing your best, work with integrity, and above all keep serving people. Success will chase you down.

            • David Cutler

              Member
              February 10, 2023 at 9:05 am
              Points: 26,754
              Rank: UC2 Brainery Advanced Brown Belt UC2 Brainery Advanced Advanced Brown Belt Rank

              That’s one of the things that I enjoy about hanging out here in the UChapter2 “room”. I am surrounded by like minded individuals who push me to take my Revu game to the next level every day.

              Thank you @troy-degroot for making the “room” available for us and thank you all for the lessons and challenges! 😎

            • Troy DeGroot

              Organizer
              February 10, 2023 at 9:09 am
              Points: 23,744
              Rank: UC2 Brainery Brown Belt III UC2 Brainery Brown Belt III

              I’m learning right alongside everyone else my friend! My favorite part is the quality of communication and friendships being made. You don’t see that on any other forum, no passive-aggressive trolls and Bluebeam bashers. Just professional problem solvers!
