    Posted by Vince French on February 13, 2022 at 1:24 pm

    If you’re anything like me, sometimes you probably find it quite difficult to spot the feint existing site levels as you scan across a site layout.

    What I now do for these is to do a visual search for the little cross marker that is next to the numbers.

    Once I have got that I apply a count – otherwise you could literally end up with thousands of individual items in your Markups List.

    Then adjust the colour & size of the actual mark-ups so that you can spot them easily but so they don’t obscure the numbers.

    Finally, apply a new layer in order so you can turn the mark-ups on and off as you require them.

    It might not pick up every last one and it might even pick up a few other items – but it can certainly make things a whole lot easier!

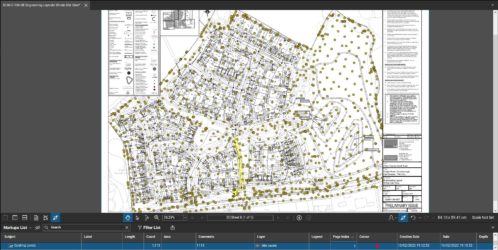

    Here’s an example of over 1,000 levels completed in literally a couple of minutes.

    Troy DeGroot replied 1 year, 10 months ago 3 Members · 6 Replies
  • 6 Replies
  • Vince French

    Member
    February 13, 2022 at 1:45 pm
    Points: 11,498
    Rank: UC2 Brainery Blue Belt I UC2 Brainery Blue Belt I

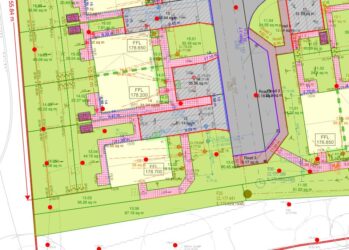

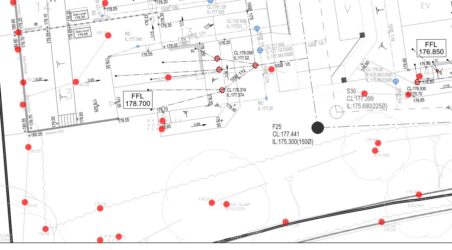

    And here is a extract that shows how this process helps when you have done other markups….

    • David Cutler

      Member
      February 14, 2022 at 6:33 am
      Points: 22,403
      Rank: UC2 Brainery Brown Belt II UC2 Brainery Brown Belt II

      Great tip @vince !

  • Vince French

    Member
    April 25, 2022 at 5:53 am
    Points: 11,498
    Rank: UC2 Brainery Blue Belt I UC2 Brainery Blue Belt I

    Quick video to show how easy this operation is…..

    https://youtu.be/E3hVVOr4lI4https://youtu.be/E3hVVOr4lI4

    • David Cutler

      Member
      April 25, 2022 at 9:54 am
      Points: 22,403
      Rank: UC2 Brainery Brown Belt II UC2 Brainery Brown Belt II

      Great video @Vince

      • Vince French

        Member
        April 25, 2022 at 10:55 am
        Points: 11,498
        Rank: UC2 Brainery Blue Belt I UC2 Brainery Blue Belt I

        Thanks @David! Still getting used to doing this sort of thing. 😃

    • Troy DeGroot

      Organizer
      April 25, 2022 at 2:40 pm
      Points: 20,343
      Rank: UC2 Brainery Brown Belt UC2 Brainery Advanced Brown Belt Rank

      great stuff @Vince thanks for sharing!
