    Brand new to Revu 21. On a utility locating team. We’d like to up our game with the mapping documents we present to the client upon job completion. Need to:

    – have a way to overlay GIS/terrain snapshot of client site on BB PDF at the outset of job scheduling.

    – Add data points from locate to BB PDF. Utility markers (power RED, gas YELLOW, water BLUE, Telco/Fiber ORANGE, sewer GREEN) and all waypoints and terminal points. eg, manhole covers, pedestals, underground terminations, and utility poles..

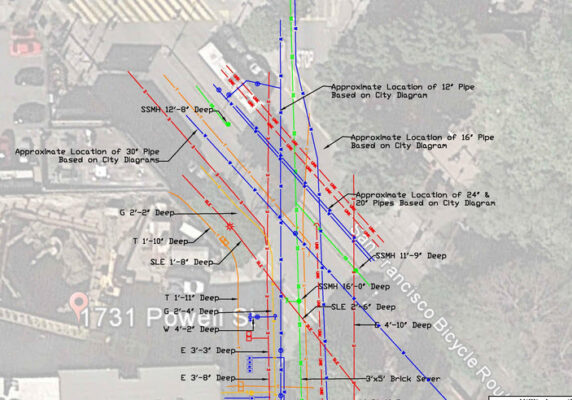

    Have I come to the right place to learn how to configure BB to allow something SIMILAR to this screenshot?

    Francisco Guerrero replied 1 month, 1 week ago 4 Members · 3 Replies
  • 3 Replies
  • David Cutler

    Member
    January 8, 2024 at 9:09 pm
    Points: 22,403
    Rank: UC2 Brainery Brown Belt II UC2 Brainery Brown Belt II

    Welcome to UChapter2 @sudsy !

    You are definitely in the right place to explore the capabilities of Revu.

    My primary use of Revu is for civil construction takeoff – which can be very similar to the image you displayed. What are you using to develop these documents currently?

    I’d suggest making some time to watch some of the videos at https://uchapter2.com/bluebeam-training-videos/ Our host, @troy-degroot , has some great resources available there.


  • Troy DeGroot

    Organizer
    January 9, 2024 at 11:16 am
    Points: 20,343
    Rank: UC2 Brainery Brown Belt UC2 Brainery Advanced Brown Belt Rank

    Welcome to the group @sudsy

    You can definitely create a layout exactly like the one you shared. All you need is a handful of custom markup tools as you mention. You can easily import an image from Google Earth or some other source on a document as your base drawing (or overlay a civil/site plan).

    1. Make sure when you create a screenshot of the image that you include the Scale. This way you can calibrate the drawing and have accurate measurements.
    2. Go to Menu Bar at the top and select Tools>Markup>Image>From File
    3. After you navigate to the image and load it, streach the image to fit the drawing or document.
    4. At this point select the image and Lock it in the Properties panel so you don’t accidently move it. (I actually Flatten it in most cases)
    5. Now you can mark up over top of the image all you want.

    Hope this helps.

  • Francisco Guerrero

    Member
    January 12, 2024 at 8:56 am
    Points: 157
    Rank: UC2 Brainery Newbie UC2 Brainery Newbie Belt Rank

    I am also new to BB and really enjoy using it since coming from HCSS Plans. I have just started doing this exact same task. Overlay drawn object from Trimble TBC. When my plots from TBC have a larger sheet print size. Once I do a “copy page to snapshot” and paste to the master page. I go to the properties of the snapshot and change the “document width and height” to match the master sheet size and so far that has work to match the scale.
