    Posted by Doug McLean on July 16, 2024 at 2:26 pm

    I’m working on this project, a ridiculously high end hotel going into 90210.

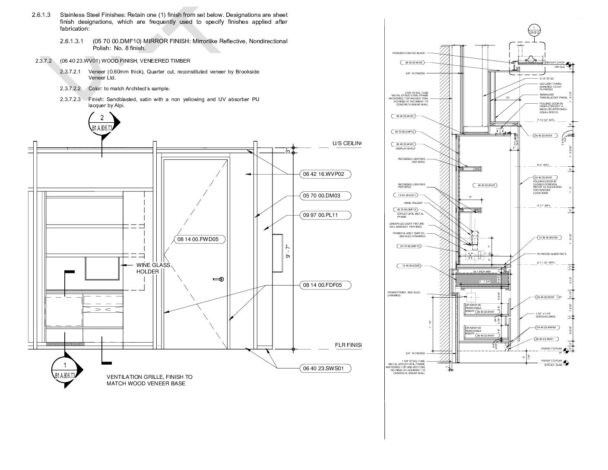

    Notice anything particularly interesting about this unit?

    This is the kind of stuff I have to deal with on a daily basis… lol

    David Cutler replied 3 months, 4 weeks ago 4 Members · 6 Replies
  • 6 Replies
  • Don Walke

    Member
    July 16, 2024 at 3:19 pm
    Points: 5,384
    Rank: UC2 Brainery Purple Belt UC2 Brainery Purple Belt Rank

    One Million Dolla!

  • David Cutler

    Member
    July 16, 2024 at 3:59 pm
    Points: 26,333
    Rank: UC2 Brainery Advanced Brown Belt UC2 Brainery Advanced Advanced Brown Belt Rank

    High end finishes for a bar that is going to be behind a door.

    Did I mis 14K gold plating on something?

    🙂

  • Vince

    Member
    July 17, 2024 at 1:48 am
    Points: 13,447
    Rank: UC2 Brainery Blue Belt III UC2 Brainery Blue Belt III

    I hope the sandblasted finish isn’t literal as I’m not sure how a 0.6mm veneer will stand up to that process in reality! 🤣

    It’s also interesting to see that the 0.60mm is the only metric dimension on the drawing.

    • Doug McLean

      Member
      July 17, 2024 at 9:05 am
      Points: 14,814
      Rank: UC2 Brainery Blue Belt IIII UC2 Brainery Blue Belt IIII

      yeah, its a US based drawing

  • Doug McLean

    Member
    July 17, 2024 at 9:08 am
    Points: 14,814
    Rank: UC2 Brainery Blue Belt IIII UC2 Brainery Blue Belt IIII

    kinda surprised that no one has noticed the 1/2″ thick plate steel on the back of the cabinet.

    Then to have it polished to a No. 8 mirror finish? That cabinet is going to weigh 500 lbs. when it completed.

    Funny, we can achieve the same look with 18g and the steel would be a 10th of the cost.

    • David Cutler

      Member
      July 18, 2024 at 1:16 pm
      Points: 26,333
      Rank: UC2 Brainery Advanced Brown Belt UC2 Brainery Advanced Advanced Brown Belt Rank

      I did see the steel tube frame, but still don’t see the plate – unless the “05 70 00″ is millwork speak for 1/2” steel 🙂

      Thought that the steel frame was probably because they don’t want it attached to the concrete wall behind it and didn’t want the thickness that a wood frame would require – or perhaps fire resistance – or seismic?
